Precision Electromagnets
We manufacture large spectrometer and analyzer magnets weighing tens of tons to multipole magnets weighing less than a kilogram.
Keep Research Moving Forward
From semiconductors to x-rays to particle accelerators, when knowledge needs to keep expanding, we have the manufacturing expertise to meet every tolerance and performance expectation.
We perform to the most demanding of specifications.
You can rely on our electromagnets when the cost of failure is unacceptable. We manufacture all critical components at our own facility, handling every step of the process with the expertise that comes from over four decades in this industry. Leveraging our precision manufacturing expertise provides precise, reliable beam control, decades into the future.
Producing the Best From The Best
We source proven, low-carbon steel and copper. Our superior manufacturing methods and materials directly impact the performance, reliability and long-term dependability of our electromagnets, protecting your investment and operations. When downtime is not an option, we ensure on-time delivery and a consistent supply of spare parts and aftersales service throughout the full product lifecycle.
Buckley Systems custom designs and manufactures all types of resistive, precision electromagnets for accelerator and laboratory use. We’ve even worked to develop new manufacturing specialties including resin cast, AC magnets and pioneering EDM wire cutting for precision shaping of multipole tips. We can work with you to determine whether copper wire, strip or hollow conductor is right for your coil and size the conductor to deliver correct magnetic field with appropriate cooling and the lowest total cost of ownership.

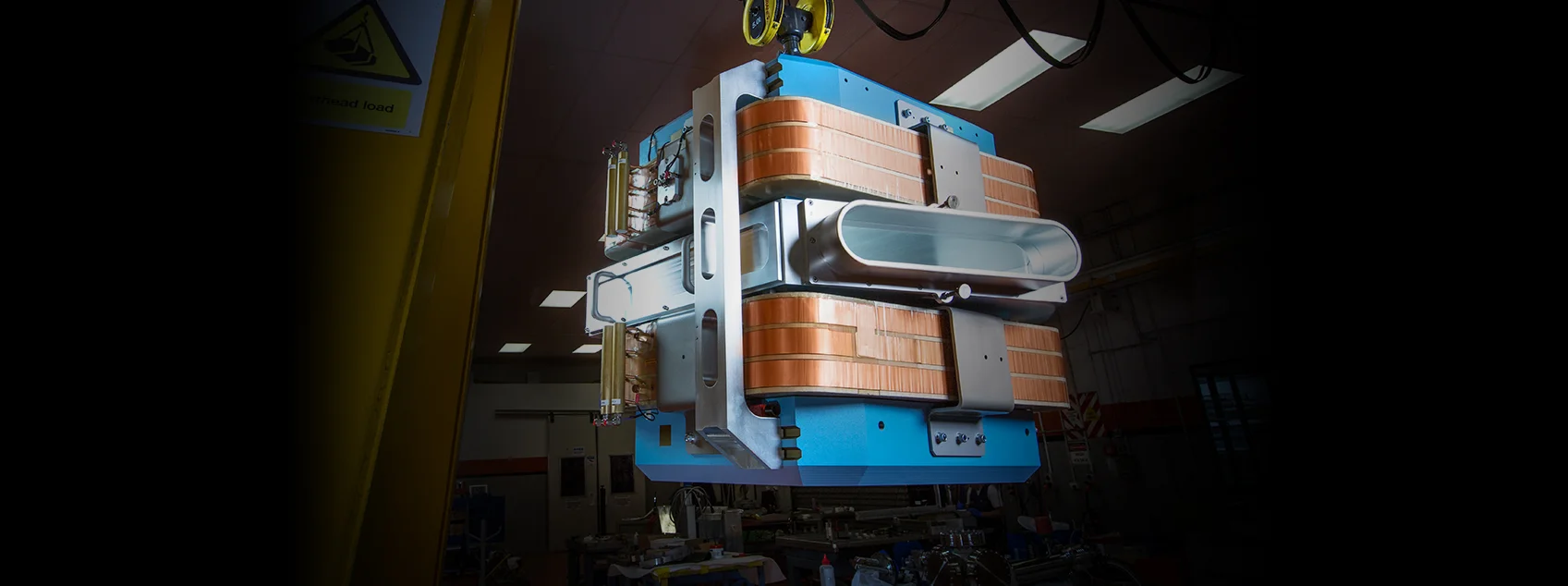

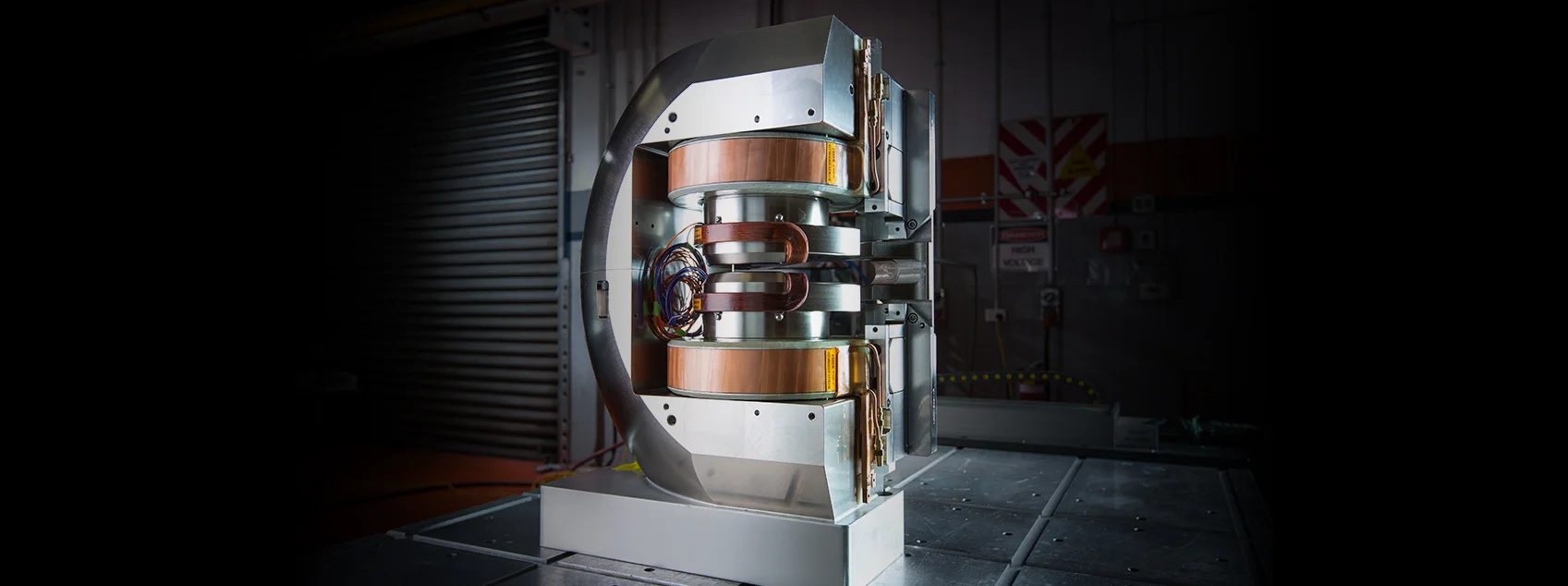

From high resolution DC mass spectrometer magnets to precise AC radiotherapy applications, we build dipoles of any size, fit for any application.

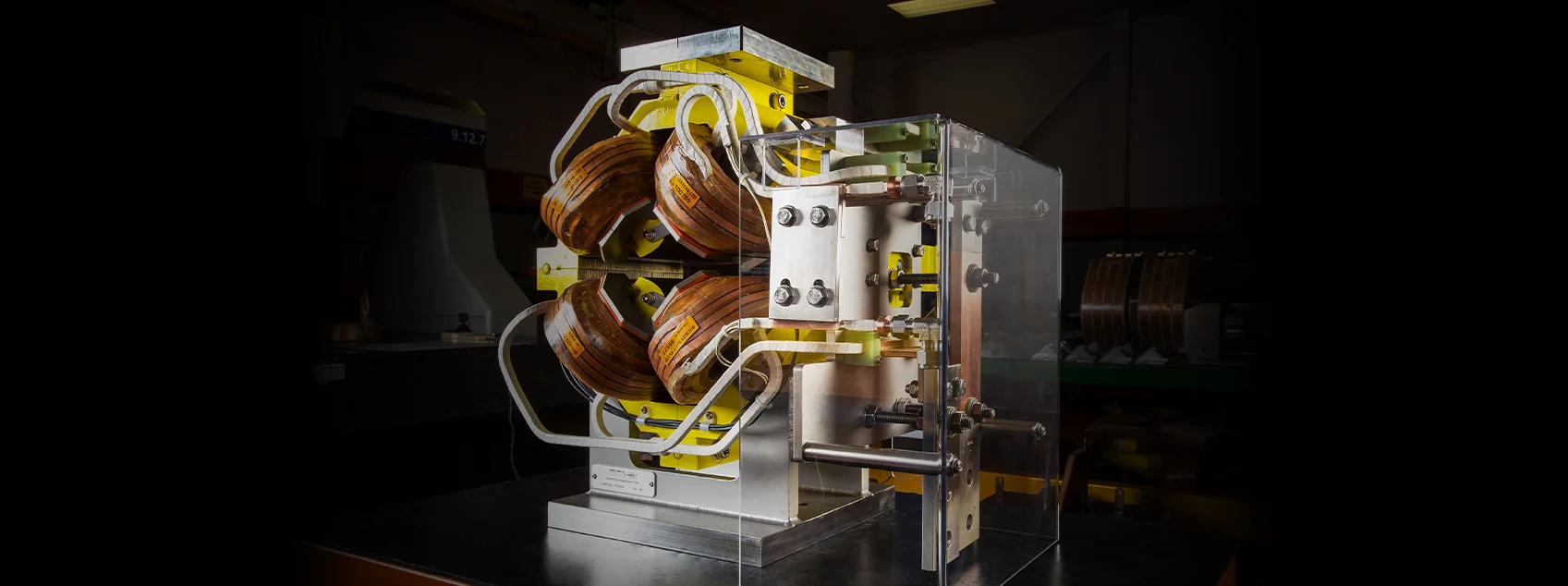

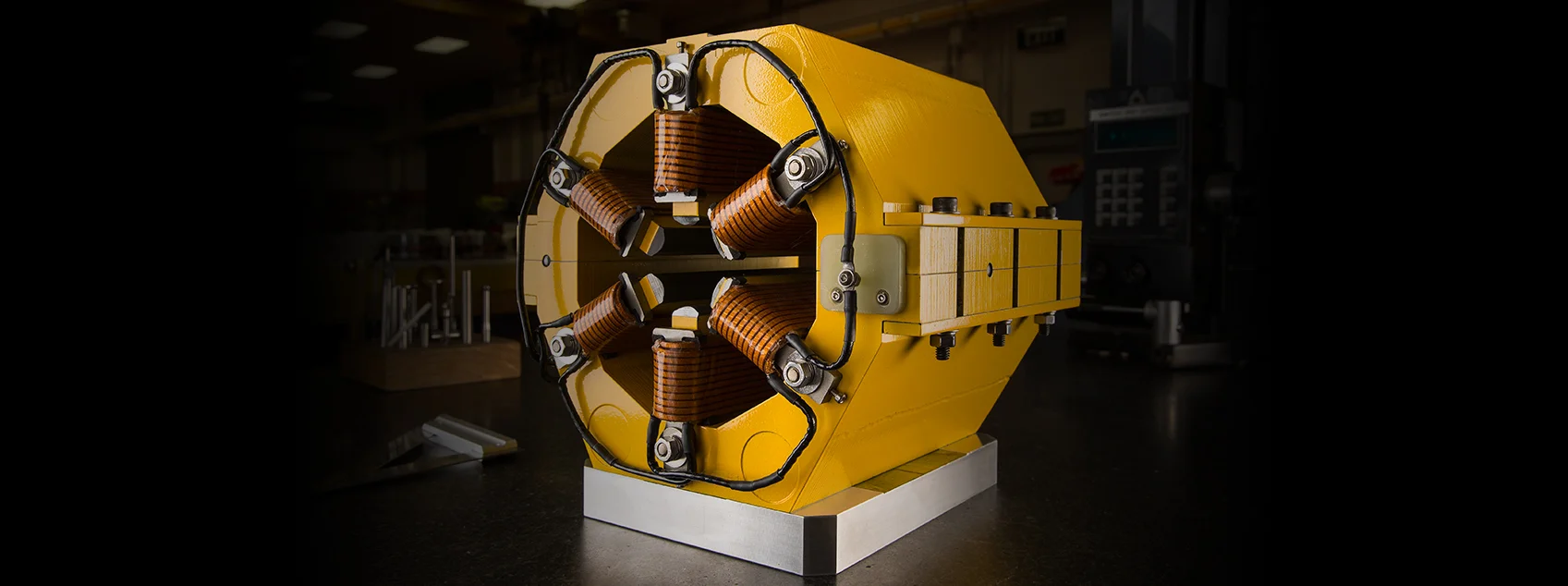

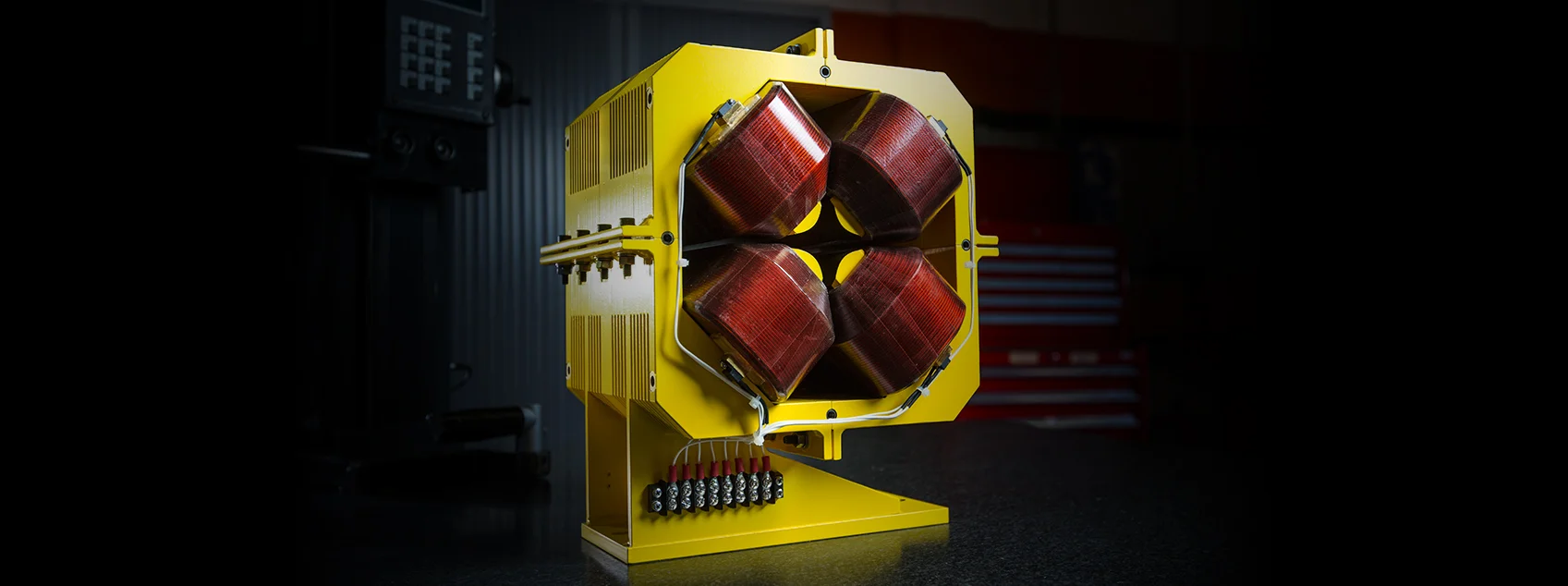

Precision multipoles include quadrupoles, sextupoles, octupoles and combination magnets—weighing from less than a kilogram to tens of tons.
Coil geometry can be from a simple 2D racetrack to a complex 3D convolution. Turns count can range from 1 to thousands.
Our copper strip dimensions range from 0.25mm to 1.5mm thick and up to 65mm wide, with other sizes available on request.
Standard wire dimensions range from 0.25mm to 8.4 mm, with other sizes available on request.
Hollow core conductor copper dimensions range in sizes from 4mm x 4mm to 26mm x 14mm, with other sizes available on request.
We Scale to Your Specifications
Our in-house design and manufacturing teams can design and tool up for any scenario, from one-off prototypes to full-scale production or anywhere in-between.
